TODO app — Delete multiple items with undo timer.

  • User can can inline delete a task.
  • When the user clicks the delete button, they should see a countdown on the item from 3 to 0, along with an inline undo option.
  • Hitting the undo option should cancel the timer and leave the item as is.
  • If the timer reaches 0, the item will then be deleted.
var timer: CountDownTimer? = null
var isTicking: Boolean = false
class ViewHolder private constructor(val binding: TaskItemBinding) :
RecyclerView.ViewHolder(binding.root) {
var timer: CountDownTimer? = null
var isTicking: Boolean = false
fun bind(viewModel: TasksViewModel, item: Task) { binding.viewmodel = viewModel
binding.task = item
binding.executePendingBindings()
}
companion object {
fun from(parent: ViewGroup): ViewHolder {
val layoutInflater = LayoutInflater.from(parent.context)
val binding = TaskItemBinding.inflate(layoutInflater, parent, false)
return ViewHolder(binding)
}
}
}
<?xml version="1.0" encoding="utf-8"?>

<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tool="http://schemas.android.com/tools">

<data>

<import type="android.widget.CompoundButton" />

<variable
name="task"
type="com.example.android.architecture.blueprints.todoapp.data.Task" />

<variable
name="viewmodel"
type="com.example.android.architecture.blueprints.todoapp.tasks.TasksViewModel" />
</data>

<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical"
>

<LinearLayout
android:layout_width="match_parent"
android:layout_height="?android:attr/listPreferredItemHeight"
android:onClick="@{() -> viewmodel.openTask(task.id)}"
android:orientation="horizontal"
android:paddingBottom="@dimen/list_item_padding"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/list_item_padding">

<CheckBox
android:id="@+id/complete_checkbox"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical"
android:checked="@{task.completed}"
android:onClick="@{(view) -> viewmodel.completeTask(task, ((CompoundButton)view).isChecked())}" />

<TextView
android:id="@+id/title_text"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical"
android:layout_marginEnd="@dimen/activity_horizontal_margin"
android:layout_marginLeft="@dimen/activity_horizontal_margin"
android:layout_marginStart="@dimen/activity_horizontal_margin"
android:layout_weight="1"
android:text="@{task.titleForList}"
android:textAppearance="@style/TextAppearance.AppCompat.Title"
app:completedTask="@{task.completed}" />

<FrameLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical"
>

<ImageView
android:id="@+id/deleteBt"
android:layout_width="30dp"
android:layout_height="30dp"
android:tint="@android:color/holo_red_light"
android:src="@drawable/ic_delete_black_24dp"
/>

<ProgressBar
android:id="@+id/progressBar"
android:layout_width="30dp"
android:layout_height="30dp"
android:indeterminate="false"
android:progressDrawable="@drawable/circular_progress_bar"
android:background="@drawable/circle_shape"
style="?android:attr/progressBarStyleHorizontal"
android:max="100"
android:visibility="gone"
android:progress="0" />

</FrameLayout>
</LinearLayout>

<Button
android:id="@+id/undoButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:visibility="gone"
android:layout_gravity="end"
android:layout_marginEnd="@dimen/activity_horizontal_margin"
android:text="Undo"
android:layout_marginRight="@dimen/activity_horizontal_margin" />
</LinearLayout>
</layout>
<?xml version="1.0" encoding="utf-8"?>
<rotate xmlns:android="http://schemas.android.com/apk/res/android"
android:fromDegrees="270"
android:toDegrees="270">
<shape
android:innerRadiusRatio="2.5"
android:shape="ring"
android:thickness="3dp"
android:useLevel="true">

<gradient
android:angle="0"
android:endColor="#007DD6"
android:startColor="#007DD6"
android:type="sweep"
android:useLevel="false" />
</shape>
</rotate>
<?xml version="1.0" encoding="utf-8"?>
<shape
xmlns:android="http://schemas.android.com/apk/res/android"
android:shape="ring"
android:innerRadiusRatio="2.5"
android:thickness="3.5dp"
android:useLevel="false">

<solid android:color="#CCC" />

</shape>
companion object {
const val UNDO_TIMER: Long = 3000
}
override fun onBindViewHolder(holder: ViewHolder, position: Int) {
val item = getItem(position)

holder.apply {

if (timer != null) {
timer?.cancel()
}

timer = object : CountDownTimer(TasksFragment.UNDO_TIMER, 100) {
override fun onTick(millisUntilFinished: Long) {
val per = (millisUntilFinished.toFloat().div(TasksFragment.UNDO_TIMER.toFloat())).times(100)
binding.progressBar.progress = (100 - per).toInt()
}

override fun onFinish() {
if (!isTicking) return //its not ticking (may be undo has been pressed)
processDelete(item, position)

}
}

binding.deleteBt.setOnClickListener {
isTicking = true // start the timer
timer?.start()
viewStateDeleting()
}

binding.undoButton.setOnClickListener {
if (isTicking) {
isTicking = false
timer?.cancel()
}
viewStateReadyToDelete()
}

bind(viewModel, item)
}
}
private fun ViewHolder.viewStateDeleting() {
binding.deleteBt.gone()
binding.progressBar.visible()
binding.undoButton.visible()
}
private fun ViewHolder.viewStateReadyToDelete() {
binding.undoButton.gone()
binding.deleteBt.visible()
binding.progressBar.gone()
}
private fun ViewHolder.processDelete(item: Task, position: Int) {
viewModel.deleteTask(item)
viewStateReadyToDelete()
isTicking = false
}
private fun View.visible() {
visibility = View.VISIBLE
}

private fun View.gone() {
visibility = View.GONE
}
fun deleteTask(task: Task) = viewModelScope.launch {
tasksRepository.deleteTask(task.id)
}

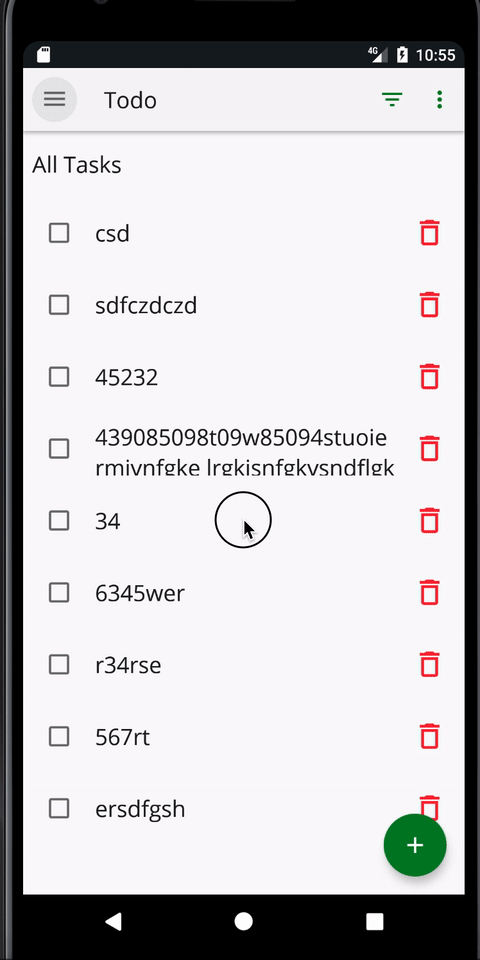

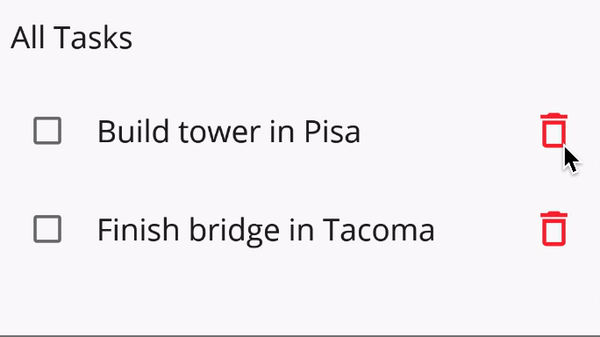

Demo of the application.

--

--

--
